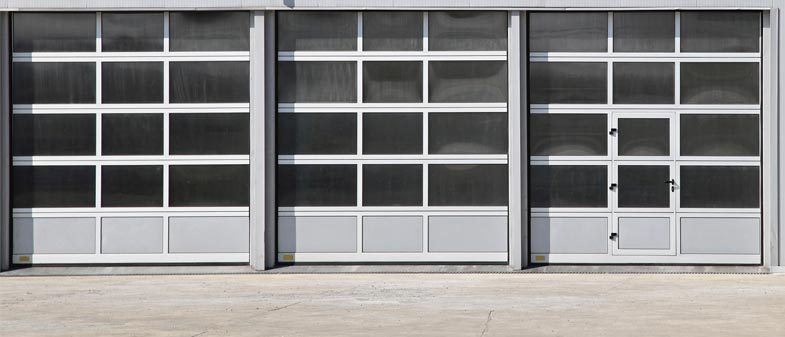

Model 3500

Aluminum Full View Door

• Full View Glass Panels
• Optional Solid Aluminum Panels
• Anodized Aluminum Finish
• 1-Year Limited Warranty

Model 2700

High R-Value Foamed-In-Place Sectional Door

• Steel Interior and Exterior Skins
• Polyurethane Insulation
• 10-Year Limited Warranty

Model 1000

TRIPLE-LAYER
Steel + Insulation + Steel

Track: All Amarr Doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.

Hardware: Amarr hardware includes minimum 14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have minimum 10-ball bearings.

Model 1350

The Model 1350 is Amarr’s medium duty commercial foamed-in-place door.
This energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.

Each Model 1350 is secured with standard 14-gauge, galvanized steel hinges. The interior skin of each section has two continuous horizontal 20-gauge reinforcing strips. The section joint is thermally broken and chemically bonded with a pressure-sensitive adhesive sealant. An EPDM rubber weather seal further enhances the performance of the joint.

Model 1380

Amarr’s Model 1380 features two steel skins surrounding 1 3/8″ inches of CFC-free polystyrene.
Each skin is made of 27-gauge steel to provide a solid wall of protection from the elements. Our 4-step insulation system features insulation, weather-stripping, thermal break, and tongue and groove construction for a snug fit between sections.

The exterior face is stucco embossed and ribbed with shallow grooves. The interior surface is stucco embossed. Model 1380 is available prepainted in Commercial White

Model 2000

Amarr Models 2000, 2400, and 2500 are the industry workhorses and our most versatile door models.
These open-back commercial steel doors are available in a variety of steel gauges and feature tongue and groove construction with a bottom weatherseal to guard against the elements. These doors can be factory- or field-modified with CFC-free polystyrene insulation to fit the needed application.

G1000

A commercial garage door ideal for large-sized doors
Made of anti-rust aluminum, the G-1000 commercial garage door delivers performance second-to-none. This commercial garage door features a superior thermal insulation factor achieved through the injection of CFC-free polyurethane foam between its walls. And, its commercial and industrial hardware systems allows for smooth opening or closing of the door.

G4000

A garage door perfect for repair shops and fire stations
This type of commercial garage door is made with anodized or pre-painted white, aluminum extrusions. It is the ideal door for applications where maximum natural light is required; for example, service stations, public markets or fire stations. There is a broad selection of windows available for this type of commercial garage door.

G5000

The industry standard for industrial and commercial applications
The G-5000 is a pre-painted steel commercial garage door designed for industrial and commercial applications. This garage door offers all the advantages of a standard commercial garage door plus an insulation factor superior to other products in its class and a hardware system allowing smooth operation of the door.

G8000

An economical commercial garage door with high standards
The G-8000 and G-8500 are pre-painted steel commercial garage doors. Our G-8500 model is an insulated pan door, with a CFC-free polystyrene core, R-value of 6.6 (RSI: 1.2) and 24-gauge steel, ribbed for added strength. The G-8000 is a non-insulated pan door. These models are available with commercial tracks and hardware.
